Description

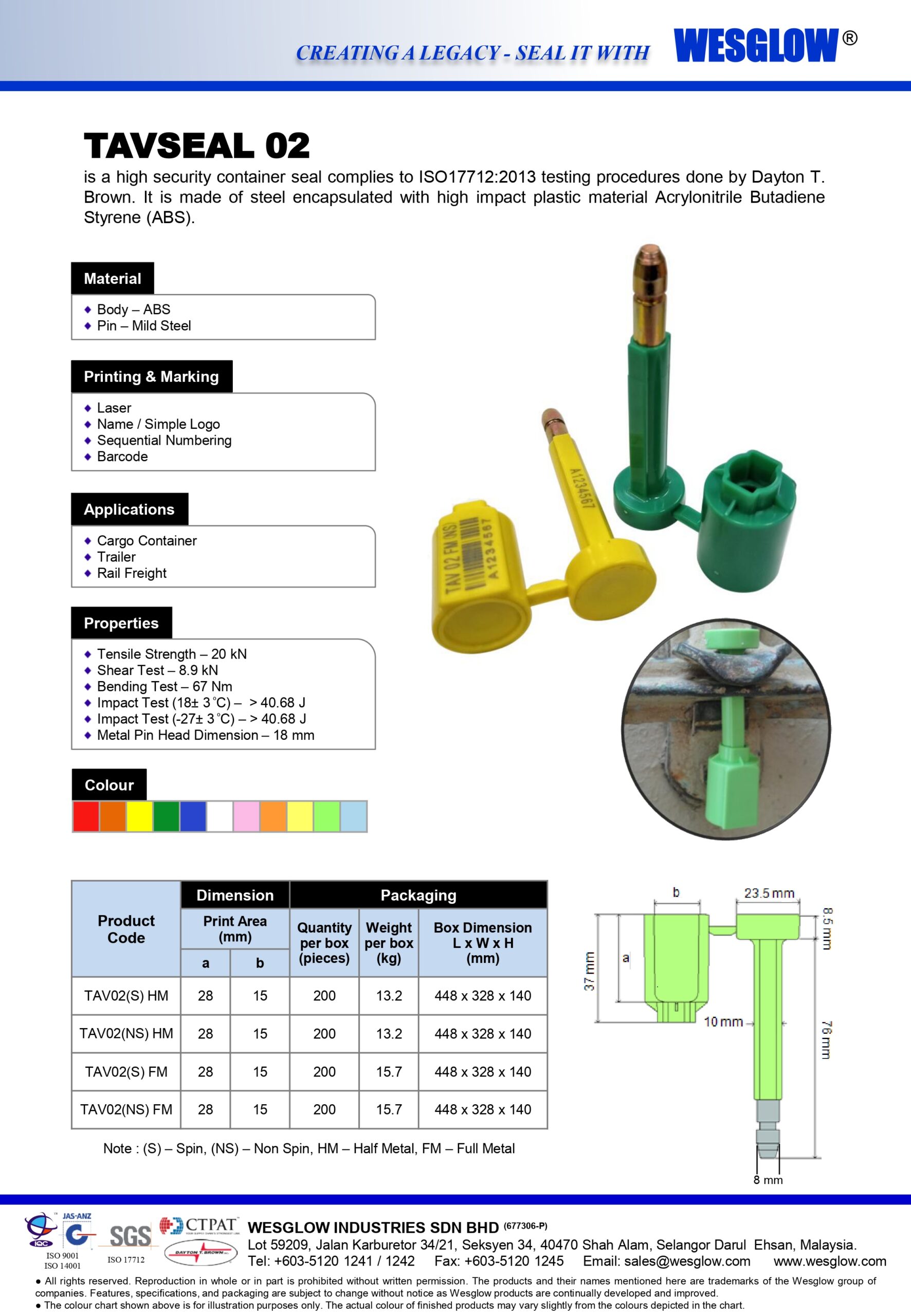

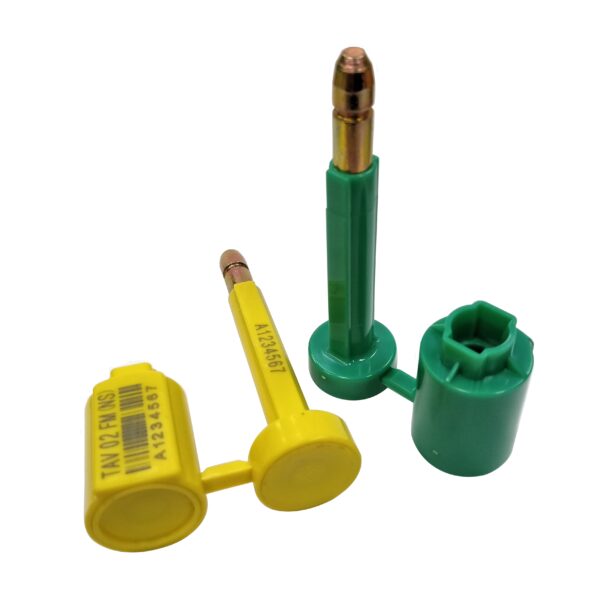

TAVSEAL 02 is a high-security container bolt seal designed in compliance with ISO 17712:2013 testing procedures conducted by Dayton T. Brown. Engineered for demanding international logistics operations, it provides reliable tamper evidence and strong mechanical performance for secure cargo transportation.

The seal is constructed from a durable mild steel pin encapsulated with high-impact ABS (Acrylonitrile Butadiene Styrene), ensuring enhanced resistance against impact, harsh handling, and environmental stress. This robust design delivers consistent locking strength and dependable protection throughout the supply chain.

TAVSEAL 02 is widely used in cargo container sealing, trailer security, and rail freight applications where high security and regulatory compliance are required.

Material

• Body – ABS
• Pin – Mild Steel

Features & Benefits

• ISO 17712:2013 compliant high-security bolt seal

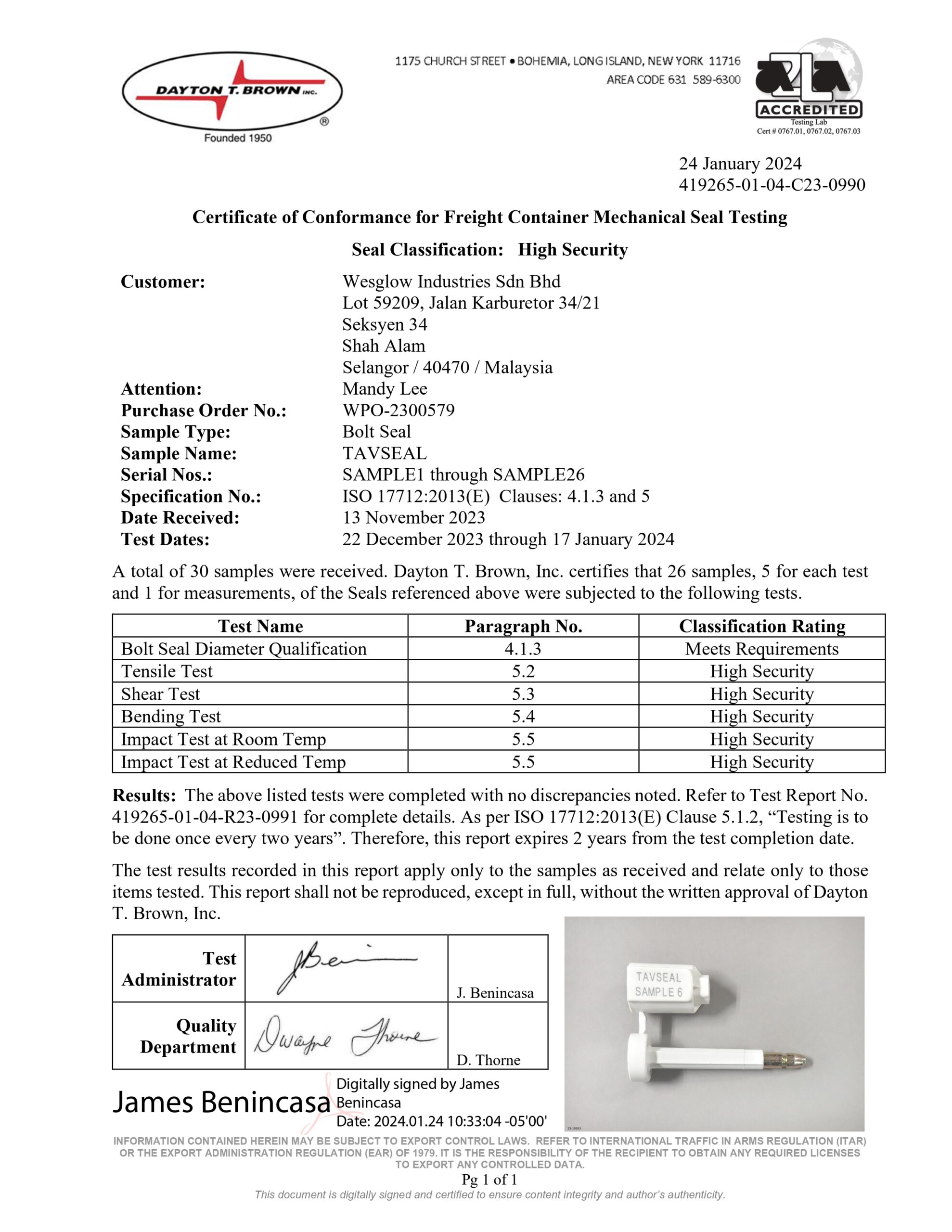

• Tested by Dayton T. Brown for verified performance standards
• High-impact ABS encapsulation for durability
• Strong mild steel pin for secure locking
• Designed for tamper-evident container sealing
• Excellent resistance to impact and harsh conditions
• Suitable for international freight and logistics

Printing & Marking

• Laser
• Name / Simple Logo
• Sequential Numbering
• Barcode

Applications

• Cargo Containers
• Trailers
• Rail Freight

Properties

• Tensile Strength: 20 kN
• Shear Test: 8.9 kN
• Bending Test: 67 Nm
• Impact Test (18 ± 3°C): > 40.68 J
• Impact Test (-27 ± 3°C): > 40.68 J
• Metal Pin Head Dimension: 18 mm
